Quick Action

A powerful Unity Editor extension that provides a circular button interface for quick access to custom actions. Activate with Ctrl+Q hotkey to display a radial menu of available actions at your mouse position.

中文文档 (Chinese Documentation)

Features

• Circular Interface: Intuitive radial button layout centered at mouse position
• Hotkey Activation: Press Ctrl+Q to instantly open the action menu
• Hierarchical Organization: Organize actions into categories and subcategories
• Dynamic Pagination: Automatically handles large numbers of actions with pagination
• Conditional Actions: Enable/disable actions based on current context
• State Management: Visual state indicators (checked/unchecked, visible/hidden)
• Priority System: Control action display order with priority values
• Easy Integration: Simple attribute-based action registration
• Dynamic Actions: Register actions programmatically at runtime for context-aware functionality

Quick Start

1. Import the Package

You can import the Quick Action package into your Unity project using one of the following methods:

Method 1: VRChat Creator Companion (VCC)

For VRChat developers: Add to VCC via VPM Listing

Method 2: Git URL (Recommended)

1. Open Unity and go to Window > Package Manager
2. Click the + button in the top-left corner
3. Select Add package from git URL…
4. Enter the following URL:

   https://github.com/Yueby/QuickAction.git


5. Click Add and wait for the package to be imported

Method 3: Manual Download

1. Download the package from the GitHub repository
2. Extract the files to your project’s Packages folder
3. Unity will automatically detect and import the package

2. Create Your First Action

Create a new script and add a simple action:

using UnityEngine;
using UnityEditor;
using Yueby.QuickActions; // Don't forget to import the namespace

public class MyActions
{
    [QuickAction("Tools/Hello World", "Display a greeting message")]
    public static void HelloWorld()
    {
        Debug.Log("Hello from Quick Action!");
    }

    [QuickAction("Tools/Create Cube", "Create a cube in the scene", Priority = -100)]
    public static void CreateCube()
    {
        var cube = GameObject.CreatePrimitive(PrimitiveType.Cube);
        cube.name = "Quick Action Cube";
        Selection.activeGameObject = cube;
    }
}

3. Use the System

Basic Operations

1. Open Menu: Press Ctrl+Q in the Unity Editor
2. Select Action: Move mouse to different angles to automatically select options
3. Execute Action:
   • Release Ctrl+Q to automatically execute the selected action
   • Or left-click to execute the action
4. Cancel Operation: Right-click to close the window without executing any action

Operation Flow

• Hold Ctrl+Q to open the menu
• Move mouse to different angles to select different options
• Release the key or left-click to execute
• Right-click to cancel the operation

Action Configuration

QuickAction Attribute

The QuickActionAttribute is used to mark methods as quick actions:

[QuickAction(path, description, Priority = priority, ValidateFunction = nameof(ValidationMethod))]

Parameters:

• path (required): Action path using forward slashes (e.g., “Tools/My Action”)
• description (optional): Action description for tooltips
• Priority (optional): Display priority (lower numbers appear first)
• ValidateFunction (optional): Method name for conditional enabling

Method Requirements

Action methods must be:

• static
• public or private
• Return void
• Have no parameters

Validation Functions

Validation functions must be:

• static
• public or private
• Return bool
• Have no parameters

Validation functions can also control action visibility and checked state using:

• QuickAction.SetVisible(path, bool): Show/hide actions
• QuickAction.SetChecked(path, bool): Set checked state (shows checkmark)
• QuickAction.GetVisible(path): Get visibility state
• QuickAction.GetChecked(path): Get checked state

Dynamic Actions

Dynamic actions allow you to register actions programmatically at runtime, perfect for context-aware functionality:

// Register a dynamic action
QuickAction.RegisterDynamicAction(
    "Selection/Component/Copy",
    () => CopyComponent(),
    "Copy selected component",
    -100
);

Dynamic Action Features:

• Runtime Registration: Add actions when the panel opens
• Automatic Cleanup: Actions are automatically removed when the panel closes
• Context Awareness: Perfect for operations that depend on current selection

Usage:

// Register event (during class initialization)
[InitializeOnLoadMethod]
private static void RegisterDynamicActions()
{
    QuickAction.OnBeforeOpen += OnQuickActionOpen;
}

// Register dynamic actions in the event
private static void OnQuickActionOpen()
{
    QuickAction.RegisterDynamicAction(
        "path/action_name",
        () => { /* action logic */ },
        "action description",
        priority
    );
}

// Dynamic action with validation
QuickAction.RegisterDynamicAction(
    "path/action_name",
    () => { /* action logic */ },
    "action description",
    priority,
    () => { /* validation logic, return bool */ }
);

Examples

Basic Actions

using UnityEngine;
using UnityEditor;
using Yueby.QuickActions;

public class BasicActions
{
    [QuickAction("Debug/Hello World", "Display a greeting message")]
    public static void HelloWorld()
    {
        Debug.Log("Hello from Quick Action!");
    }

    [QuickAction("GameObject/Create Cube", "Create a cube in the scene")]
    public static void CreateCube()
    {
        var cube = GameObject.CreatePrimitive(PrimitiveType.Cube);
        cube.name = "Quick Action Cube";
        Selection.activeGameObject = cube;
    }
}

Conditional Actions

using UnityEngine;
using UnityEditor;
using Yueby.QuickActions;

public class ConditionalActions
{
    [QuickAction("Selection/Delete Selected", "Delete selected GameObjects", ValidateFunction = "HasSelection")]
    public static void DeleteSelected()
    {
        if (Selection.gameObjects.Length > 0)
        {
            foreach (var go in Selection.gameObjects)
            {
                Undo.DestroyObjectImmediate(go);
            }
        }
    }

    private static bool HasSelection()
    {
        bool hasSelection = Selection.gameObjects.Length > 0;
        // Only show this action when objects are selected
        QuickAction.SetVisible("Selection/Delete Selected", hasSelection);
        return hasSelection;
    }

    [QuickAction("Play Mode/Stop Play", "Stop play mode", ValidateFunction = "IsPlaying")]
    public static void StopPlay()
    {
        EditorApplication.isPlaying = false;
    }

    private static bool IsPlaying()
    {
        return EditorApplication.isPlaying;
    }
}

State Management Actions

using UnityEngine;
using UnityEditor;
using Yueby.QuickActions;

public class StateActions
{
    private static bool _featureEnabled = false;

    [QuickAction("Settings/Toggle Feature", "Enable/disable a feature", ValidateFunction = "ValidateFeature")]
    public static void ToggleFeature()
    {
        _featureEnabled = !_featureEnabled;
        Debug.Log($"Feature {(_featureEnabled ? "enabled" : "disabled")}");
    }

    private static bool ValidateFeature()
    {
        // Show checkmark when feature is enabled
        QuickAction.SetChecked("Settings/Toggle Feature", _featureEnabled);
        return true;
    }

    [QuickAction("Tools/Debug Mode", "Toggle debug mode", ValidateFunction = "ValidateDebugMode")]
    public static void ToggleDebugMode()
    {
        Debug.unityLogger.logEnabled = !Debug.unityLogger.logEnabled;
    }

    private static bool ValidateDebugMode()
    {
        // Show current debug mode state
        QuickAction.SetChecked("Tools/Debug Mode", Debug.unityLogger.logEnabled);
        return true;
    }
}

Hierarchical Organization

using UnityEngine;
using UnityEditor;
using Yueby.QuickActions;

public class HierarchicalActions
{
    [QuickAction("Tools/Utilities/Screenshot", "Take a screenshot")]
    public static void TakeScreenshot()
    {
        ScreenCapture.CaptureScreenshot("screenshot.png");
        Debug.Log("Screenshot saved as screenshot.png");
    }

    [QuickAction("Tools/Utilities/Open Persistent Data", "Open persistent data path")]
    public static void OpenPersistentData()
    {
        EditorUtility.RevealInFinder(Application.persistentDataPath);
    }

    [QuickAction("Tools/Scene/Save Scene", "Save current scene")]
    public static void SaveScene()
    {
        EditorSceneManager.SaveScene(EditorSceneManager.GetActiveScene());
    }
}

Dynamic Component Actions

Dynamic actions are perfect for context-aware operations like component management:

using UnityEngine;
using UnityEditor;
using Yueby.QuickActions;

public class ComponentActions
{
    [InitializeOnLoadMethod]
    private static void RegisterDynamicActions()
    {
        QuickAction.OnBeforeOpen += OnQuickActionOpen;
    }

    private static void OnQuickActionOpen()
    {
        if (Selection.activeGameObject != null)
        {
            var components = Selection.activeGameObject.GetComponents<Component>();

            foreach (var component in components)
            {
                if (component == null) continue;

                var componentName = component.GetType().Name;
                var componentKey = $"{componentName}_{component.GetInstanceID()}";

                // Register copy and remove actions for each component
                QuickAction.RegisterDynamicAction(
                    $"Selection/Component/{componentName}/Copy",
                    () => CopyComponent(componentKey),
                    $"Copy {componentName} component",
                    -850
                );

                QuickAction.RegisterDynamicAction(
                    $"Selection/Component/{componentName}/Remove",
                    () => RemoveComponent(componentKey),
                    $"Remove {componentName} component",
                    -849
                );
            }
        }
    }

    private static void CopyComponent(string componentKey)
    {
        // Implementation for copying component
        Debug.Log($"Copied component: {componentKey}");
    }

    private static void RemoveComponent(string componentKey)
    {
        // Implementation for removing component
        Debug.Log($"Removed component: {componentKey}");
    }
}

Key Benefits:

• Automatic Context Detection: Actions are created based on current selection
• Temporary Actions: Actions are automatically cleaned up when panel closes
• Scalable: Works with any number of components or objects
• Performance Optimized: Only creates actions when needed

SceneView Integration

Quick Action provides specialized SceneView integration features, including:

• View Switching: Quickly switch to front/back/left/right/top/bottom views
• Orthographic/Perspective Mode: Toggle SceneView projection mode
• Context Awareness: Only show relevant actions when SceneView window is active

Interface Usage

Navigation

• Center Circle: Move mouse away from center to activate selection
• Action Buttons: Hover to select, release hotkey or click to execute

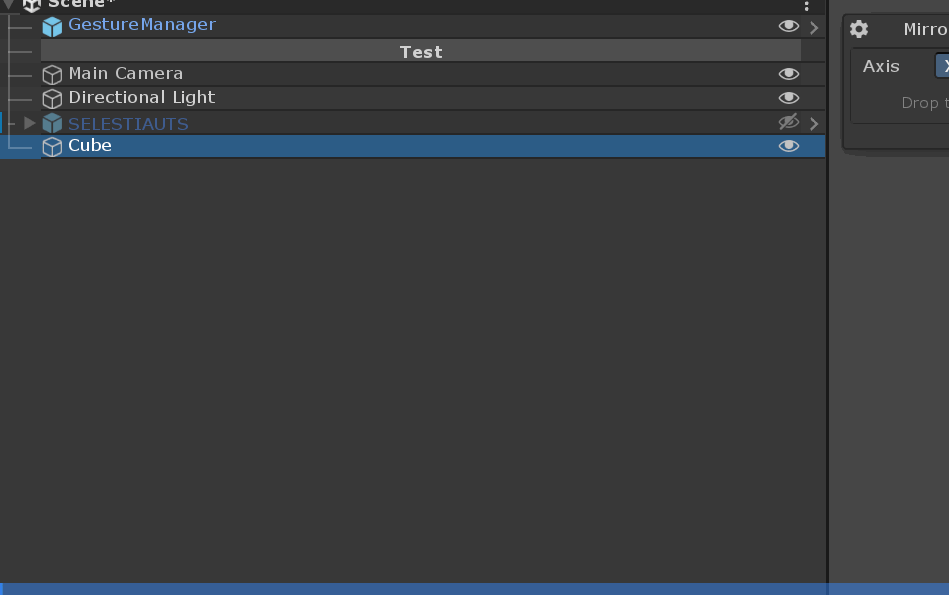

• Back Button (↑): Return to previous category or first page
• Next Page (←): Navigate to next page when available

Pagination

• Maximum 8 buttons per page
• Automatic pagination for categories with many actions
• Dynamic button allocation (back button, actions, next page button)

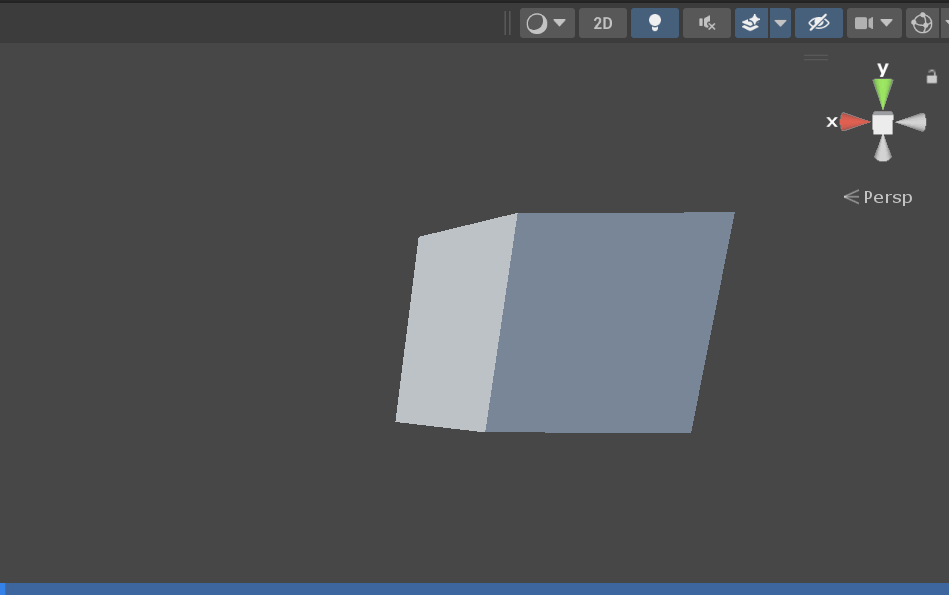

Visual State Indicators

• Checked Actions: Display a colored left border to indicate “on” state
• Unchecked Actions: Display a gray left border with reduced opacity for “off” state
• No State: Actions without state management don’t show border indicators
• Hidden Actions: Actions can be dynamically hidden based on context

Background Display

• The circular interface captures the background content behind it to create a seamless visual effect
• The background is not transparent but uses a screenshot of the editor content at the interface position
• This creates the illusion of transparency while maintaining proper UI rendering

Best Practices

Action Organization

• Use descriptive paths: "Tools/Build/Build Player" instead of "Build"
• Group related actions: "GameObject/Primitives/Create Cube"
• Keep action names concise but clear

Performance

• Avoid heavy operations in validation functions
• Use validation functions to prevent errors
• Consider using Undo operations for reversible actions

Error Handling

• Validate inputs before processing
• Provide meaningful error messages
• Use try-catch blocks for risky operations

API Reference

QuickActionAttribute

[QuickAction(string path, string description = null)]

Properties

• Path: Action path (required)
• Description: Action description (optional)
• Priority: Display priority (optional, default: 0)
• ValidateFunction: Validation method name (optional)

---

Development Note: This project was developed with assistance from Cursor.
