Hackebein’s Object Tracking

Track your real objects and track them in VRChat. All SteamVR/OpenVR supported trackers are supported. Demo

Needs App. Available on:

• Steam (soon¹)
• Github

¹ beta keys can be requested via support

Hackebein’s VPM Listing: vpm.hackebein.dev

Support

• Hackebein’s Research Lab at discord.gg

Project Overview

Task Overview

Versions

Everything before version 1.0 is to be seen as pre-release.

Pre-release

Pre-releases are essentially test versions that have undergone less rigorous testing and may contain bugs. These versions have limited compatibility and are typically designed to work only with the latest provided App version.

Unity Setup Script

Pre-Setup

• Add VPM Listing: vpm.hackebein.dev to VCC
• Add VPM “Hackebein’s Object Tracking Setup” to your Project
• Add setup component by clicking
  top-navigation > Tools > Hackebein > Object Tracking Setup
• (Optional) Start SteamVR and connect trackers you like to use

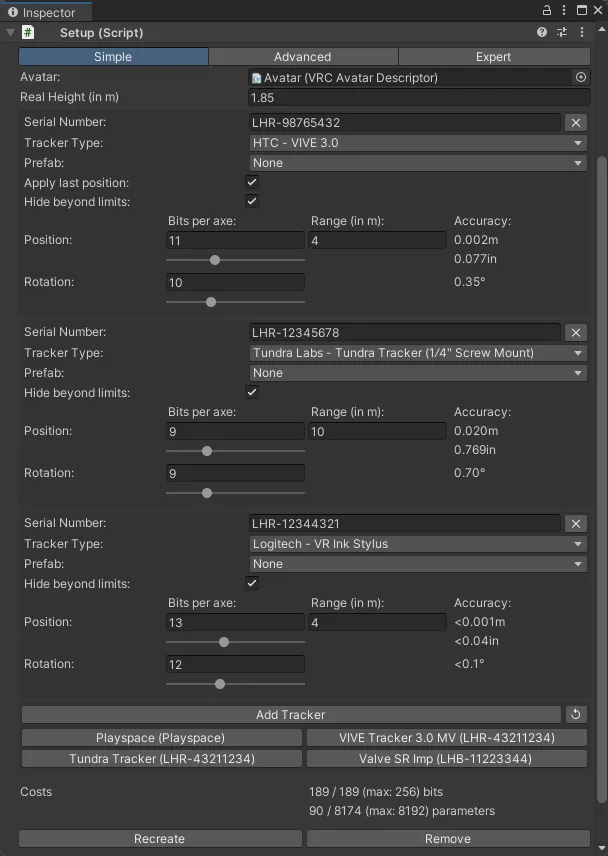

Quick Setup (simple)

• Avatar: select your avatar
  ^{needs to contain Avatar Descriptor component}
• Real height (in m)
• If SteamVR is Running:
  • click reload button
  • click tracker you like to add
• If SteamVR is not Running:
  • click “Add Tracker”
  • Serial Number: Can be obtained in SteamVR System Report
    ^{not S/N, which can be printed on your tracker}
  • Tracker Type: Select how the tracker looks in editor
• Prefab: Shows some more information about the prefab after selecting
• Hide beyond limits: Hides the object if it goes beyond maximum range
• Setup your Tracking costs
• Press Create: Tracker gets generated at 0, 0 if “Apply last position” is unchecked
• Align your object inside the object with the same serial number at 1:1 IRL scale

Video: https://youtu.be/oxvaUqVMznQ (made with earlier version)

Menu Item

ObjectTracking/tracker/<SERIAL NUMBER>/enabled

Toggle - Enables Object

ObjectTracking/goStabilized

Toggle - stabalize movement if a lot of movement is going on

ObjectTracking/isStabilized [Read Only]

Button - shows if stabalization is active

Debug Menu Item

ObjectTracking/isRemotePreview

Toggle - Switches to remote view.

ObjectTracking/config/global

Toggle - Resends config to App.
